STRAIL T kerbstone
Sturdy standard kerbstone for level crossings that stand the test of time

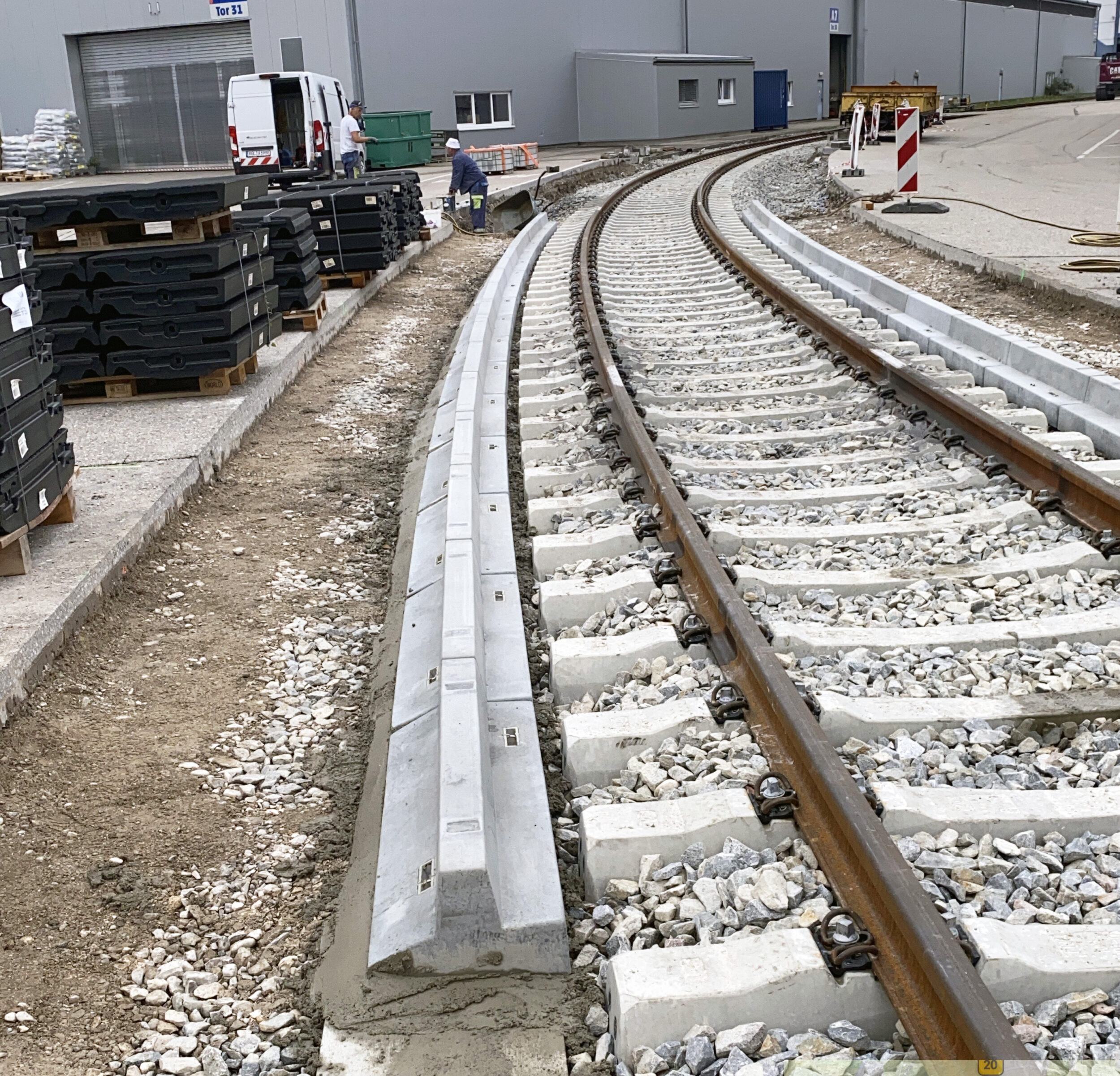

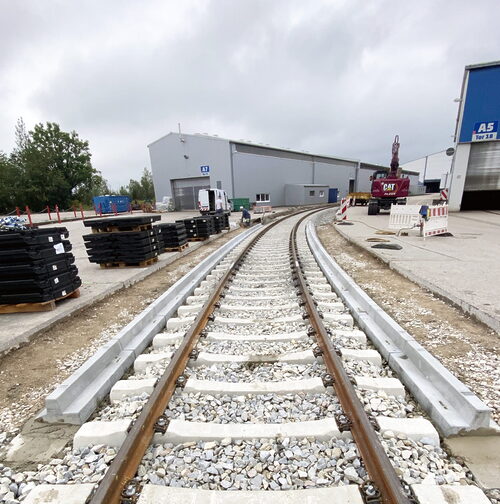

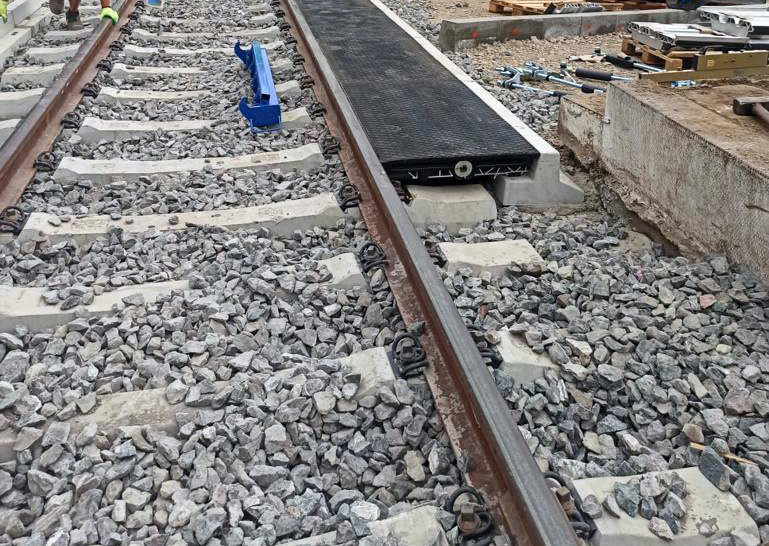

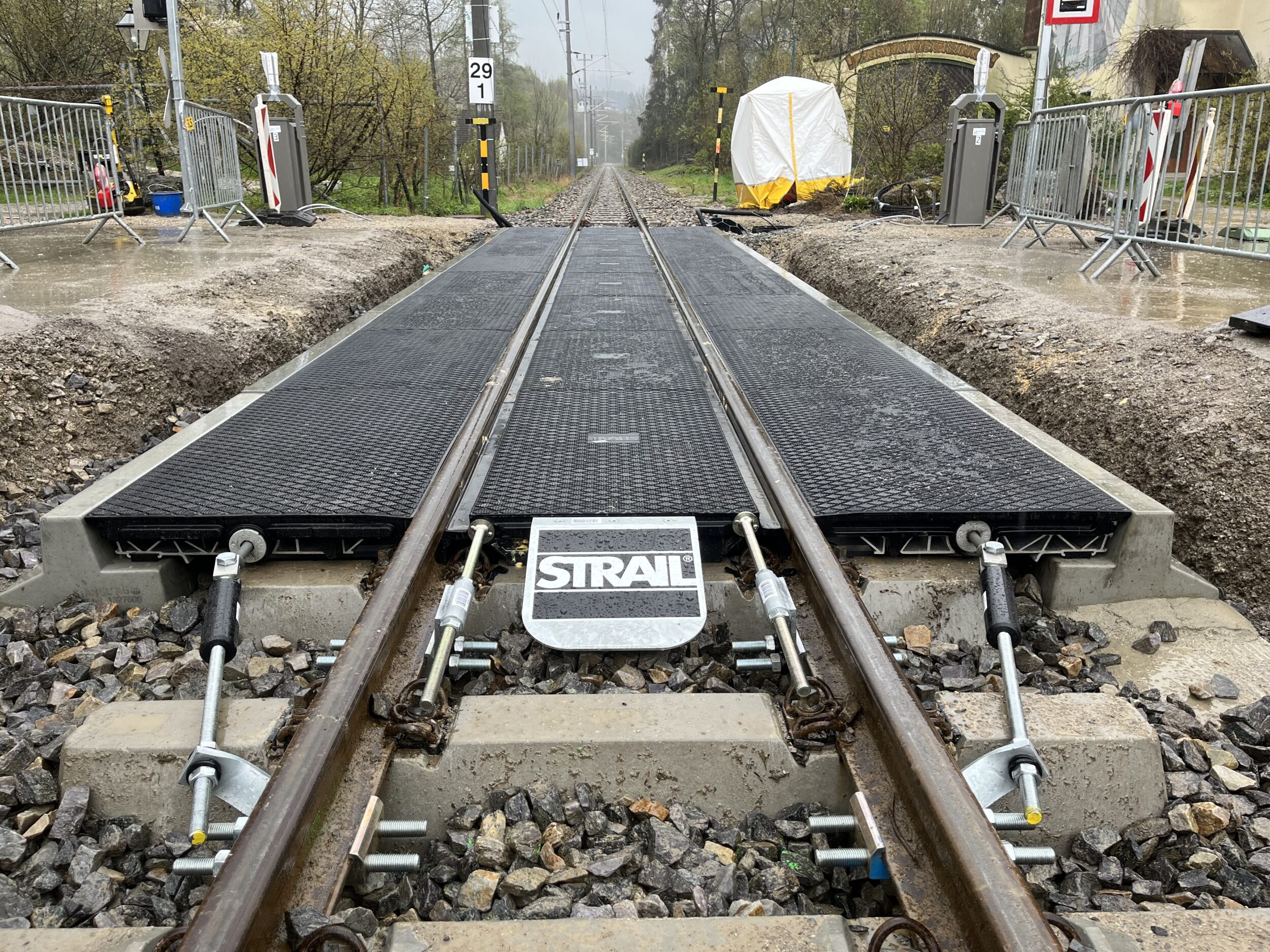

The T kerbstone forms the proven basis for many STRAIL level crossing systems. Made from high-strength concrete (C70/85), it provides a stable, load-bearing base for the outer panels and fits seamlessly into the level crossing structure. Available in 1,200 mm and 600 mm lengths with a standardized profile, the T kerbstone is highly versatile — ideal for both new installations and refurbishment projects. Its solid design ensures reliable, long-lasting performance, even under heavy-duty traffic.
Reliable support element with a modular system design

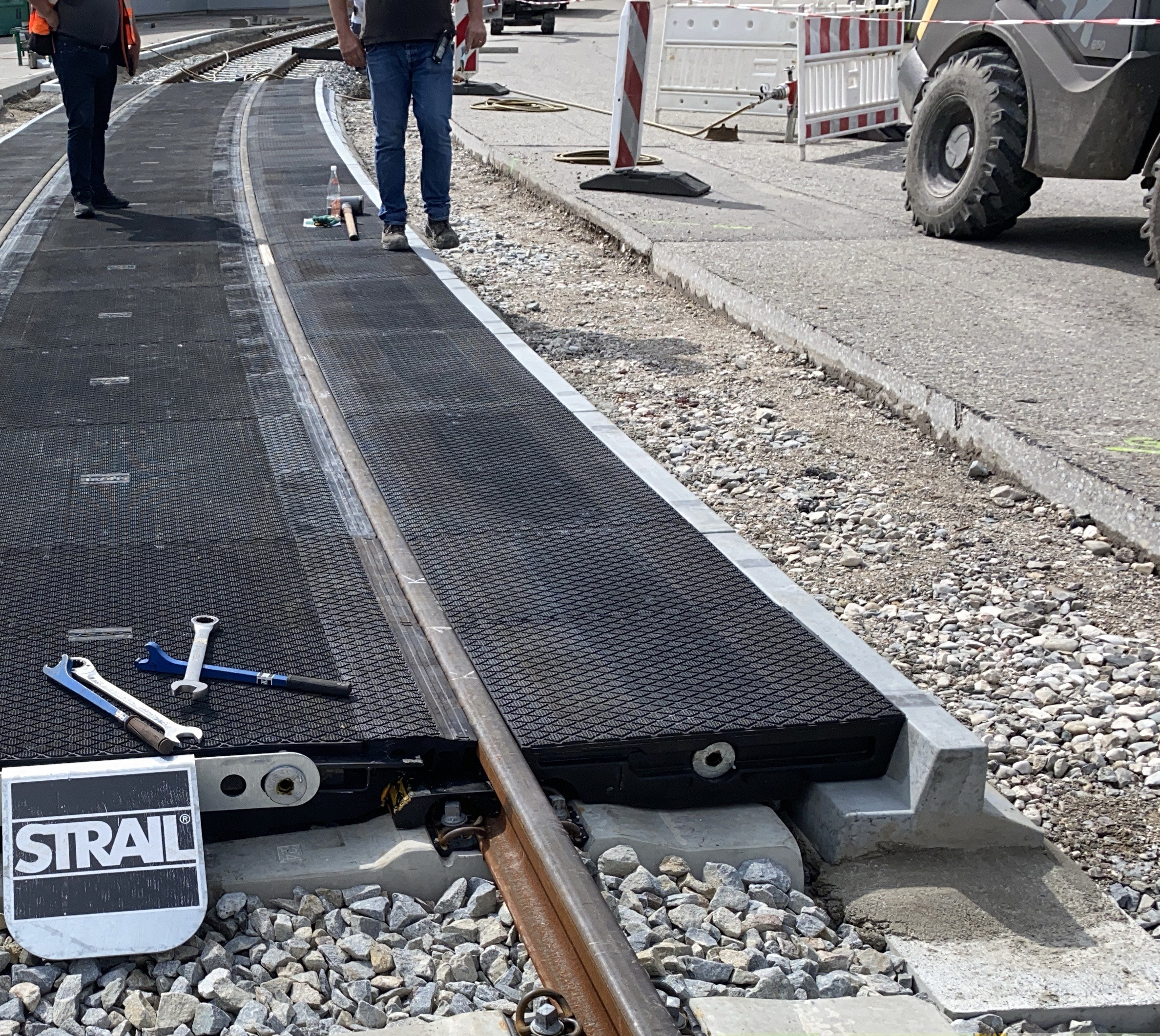

The T kerbstone provides a stable, load-bearing connection between the roadway and the level crossing panels. It can be combined with various STRAIL outer panels and is suitable for all common installation methods — fast, straightforward, and cost-effective.
- Made from high-strength concrete (C70/85) for maximum stability
- Standard lengths: 1,200 mm and 600 mm
- Works seamlessly with STRAIL precast foundations

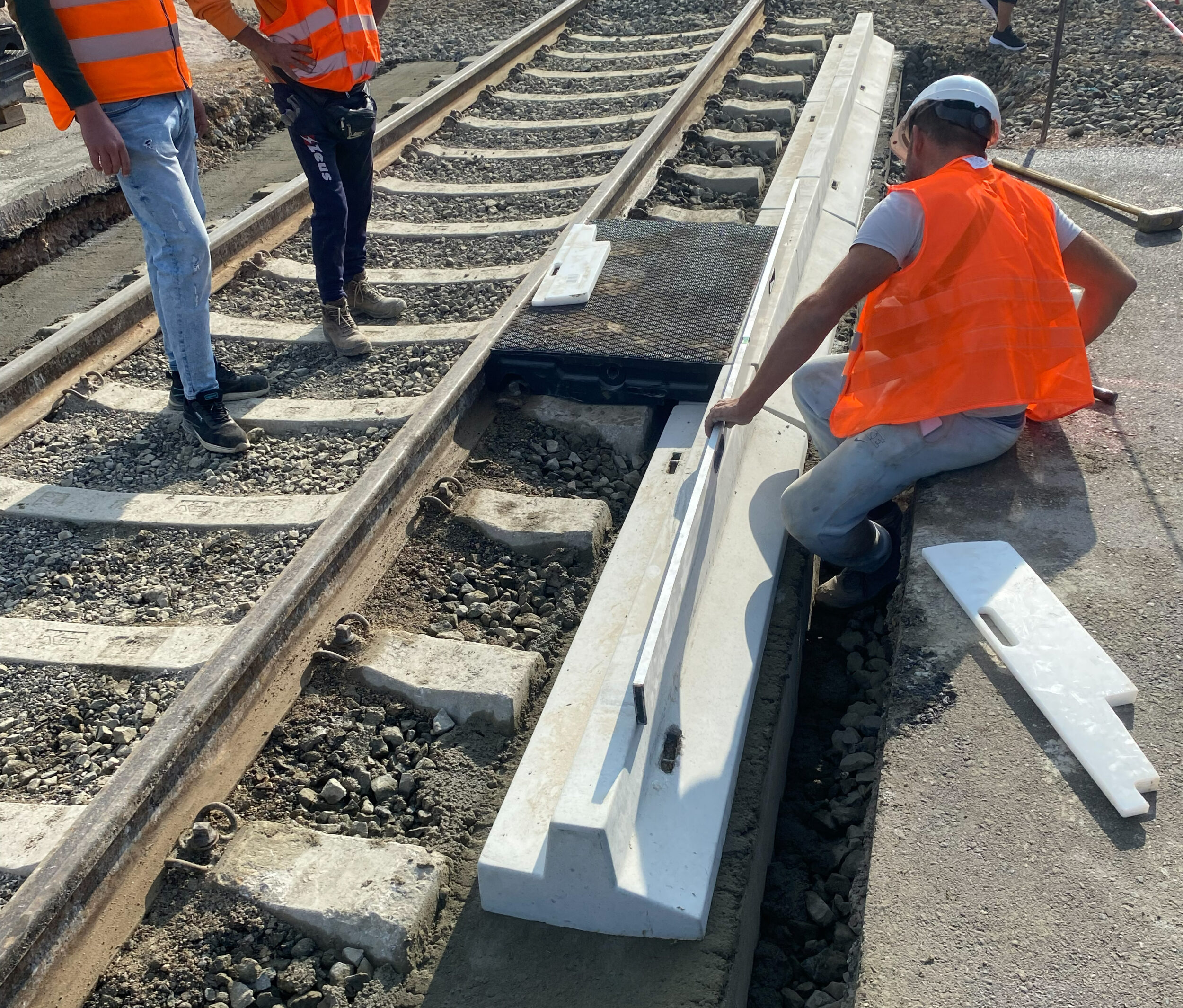

- Quick installation, ideal for refurbishments and new constructions
- Identical to the D kerbstone (without drainage)
References
strailpede
A safe level crossing for all road users
Following an urgent refurbishment in Ibbenbüren, the Glücksburger Straße level crossing now ensures maximum safety for everyone thanks to the new track alignment.
Find out moreSTRAILway 30
STRAILway 30: Easy installation saves time in South Tyrol
In South Tyrol, a section of track in Renon was modernized. The project relied on inno for safe level crossings and the innovative STRAILway 30 sleepers for efficient on-site installation.
Find out moreGreen track
STRAILastic green track: Fast setup, flawless insulation
During the refurbishment of Munich’s Tram Line 25, Stadtwerke München installed 1,880 meters of green track. Discover how the STRAILastic_R profile not only met the stringent requirements for stray current insulation, but also, thanks to its quick and easy installation, helped the project reach completion ahead of schedule.
Find out morevelo
72 meters of safety: velo ensures a smooth crossing for cyclists
The deteriorated level crossing on Strand Road in Preston posed a safety risk—especially for the many cyclists. Discover how Ribble Rail used the velo system to make the crossing both safe and accessible, and how the 72-meter-long crossing was completed in just five hours thanks to the system’s rapid installation.
Find out moreinno
inno: Emergency access and derailment protection on Water Tower Bridge
On the busy Water Tower Bridge in Luxembourg City, the combination of car and tram traffic poses a particular challgenge. Find out how the inno level crossing panels enable emergency access thanks to custom cutting and the integration of a derailment protection groove, while at the same time guaranteeing maximum safety in the event of a tram derailment.
Find out moreIP
Concrete-look noise protection blending seamlessly into the picturesque Cinque Terre coastline
Along the double-track coastal line in Bonassola (Cinque Terre), the rail operator was seeking a compact and visually appealing noise protection solution for the bridge sections. Thanks to the quick installation of the infill panels and their customized concrete-look design, rail noise was effectively reduced while the panels blend perfectly into the historic coastal landscape.
Find out moreSTRAILway
Ecological excellence: STRAILway secures the “Pont Bleu” over the Drôme
As part of the €70 million refurbishment of the Livron–Aspres line, SNCF Réseau faced an environmental challenge: the ‘Pont Bleu’ spans a strictly protected nature reserve. The solution for maximum water protection and technical precision were STRAILway polymer sleepers.
Find out moreSTRAILway
Follow-up project in Hungary: GYSEV once again relies on STRAILway for bridge refurbishment
Building on their successful experience since 2020, Hungary’s GYSEV ZRt. once again turned to STRAILway for the refurbishment of the Répcelak tidal channel bridge. In May 2023, aging wooden bridge sleepers were replaced with the durable, modern polymer solution.
Find out moreSTRAIL D kerbstone
Efficient drainage with the STRAIL D kerbstone
In the rain-prone province of Limburg (Netherlands), the combination of the pede level crossing system and the STRAIL drainage kerbstone ensures efficient drainage and improved accessibility at the station.
Find out moreSTRAILway
STRAILway replaces wooden sleepers in steelworks
Extreme loads of 15 million gross tons per year and maintenance-intensive wooden sleepers posed major challenges for the plant railway at Salzgitter Flachstahl GmbH. The solution: the all-inclusive, worry-free STRAILway polymer sleeper package – in service since 2018 and still in outstanding condition.
Find out moremSW 1250Rail web dampers
First pilot installation of the mSW 1250 – complemented by proven rail web dampers
How do you protect a new residential area from railway noise without blocking the view?
In Bispingen, Germany, the first pilot installation of the mSW 1250 — combined with our rail web dampers — demonstrated that highly effective noise protection is achievable even at a height of just 1.25 m
Find out moreIn Bispingen, Germany, the first pilot installation of the mSW 1250 — combined with our rail web dampers — demonstrated that highly effective noise protection is achievable even at a height of just 1.25 m
pedepedeSOLAR
pedeSOLAR creates bright, intuitive guidance for pedestrians at level crossings
The innovative and sustainable pedeSOLAR system provides self-contained, solar-powered lighting.
It delivers clear, additional guidance for cyclists and pedestrians, particularly in school zones in Kaltenkirchen South, Germany. By harnessing solar energy, it helps minimize accident risk in low-light conditions and sustainably enhances traffic safety in an environmentally friendly way.
Find out moreIt delivers clear, additional guidance for cyclists and pedestrians, particularly in school zones in Kaltenkirchen South, Germany. By harnessing solar energy, it helps minimize accident risk in low-light conditions and sustainably enhances traffic safety in an environmentally friendly way.
mSW 360
Our mini noise barrier: Effective and unobtrusive
The reactivation of the Ammertalbahn presented the operator with the challenge of effectively protecting residents in densely populated areas from rail noise—without impacting the surrounding landscape. Discover how the compact and flexible design of the mSW 360 delivered the ideal, discreet solution thanks to its low installation height and technical versatility.
Find out morepede
Flame-retardant pede solution for metro tunnels
Across the Milan Metro network, 24 pede level crossings with a flame-retardant rubber surface have been installed. These specially engineered crossings serve as essential emergency evacuation routes for passengers, significantly enhancing overall safety. Find out how our solution not only improves safety but also simplifies track maintenance.
Find out morepontistrail
Efficient modernization with ponti and strail for critical crossings
Two level crossings in direct succession on the busy national road in Tecuci, Romania, represented a critical traffic junction. Find out how we installed a durable and modern solution in collaboration with track renewal. Despite challenging local conditions, the installation was completed in just two days.
Find out moreGRS track frame supportTOR_simplex
Complex track refurbishment with the STRAILastic track damping system
A successful track refurbishment in Ulm: Our STRAILastic_TOR_simplex was seamlessly installed despite an 8 % descending gradient, a curve, and an underpass. A testament to maximum flexibility and performance under the toughest conditions.
Find out moregrid
Keeping tracks safe: grid at Ulzburg Süd Station
Effective protection against unauthorized access to the track area: At the busy Ulzburg Süd station in Schleswig-Holstein, it only took 3.5 hours to install grid over a 30 m² area. The rubber panels enhance safety and convinced AKN Eisenbahn GmbH of its effectiveness.
Find out moreSTRAILway
Polymer sleepers in Loucna stand out for their easy handling
The first installation of STRAILway polymer sleepers in the Czech Republic took place in Loucna. This project involved replacing old wooden turnout sleepers. The quick, uncomplicated installation of the polymer sleepers and their attractive, high-quality design impressed the client and the railroad and public utility managers involved.
Find out moreedge
edge bridges the gap between the tram and the platform in Florence
To ensure optimal safety and comfort for passengers at the 15 stops of Florence’s Tram Line 1, the gaps between the platforms and the trams needed to be closed. KRAIBURG STRAIL’s flexible and durable edge system provided the perfect solution: it acts as a sturdy cushion while bridging the gap, significantly enhancing boarding safety.
Find out moreRail web dampersIPmSW 360
Complete noise protection solution with the combined STRAILwave product range for reactivated tracks
After 45 years of closure, Nordhorn was reconnected to passenger transport. In order to protect local residents and recreational areas along the reactivated line, Bentheimer Eisenbahn AG opted for a combination of three STRAILwave noise protection products: rail web dampers, IP and the mSW 360 mini noise barrier. Planning, organization and installation were successfully completed in just a few weeks.
STRAIL B kerbstone
Level crossing with inno and B kerbstone installed in just three hours
The increasingly tight track possession times in modern track construction require solutions that are not only robust, but above all quick to install. For this project, the choice fell on the efficient combination of the inno system, which is independent of sleeper spacing, and the B kerbstone, which requires no foundation. It took a team of four just three hours to install the entire 5.4-meter-long level crossing. Thanks to the B kerbstone’s foundation-free design, the track could be reopened to traffic immediately after installation.
Find out moreprofil
Smooth crossing: profil closes crane rail gaps at the Port of Antwerp
Massive container cranes require large recesses in the quay to move along their rails. At the Port of Antwerp, these gaps—up to 55 cm deep—posed a significant obstacle and a safety risk for other traffic. Discover how the STRAIL system profil safely bridges the gap, optimizes logistics, and ensures the safety of all vehicles and personnel.
Find out moreStandardized kerbstones for permanent road connection
The T kerbstone is the central support for many STRAIL systems and impresses with its robust, load-distributing function between the track and the roadway. The component ensures even force transmission to the substructure, especially at busy level crossings, factory access roads or combined traffic areas. Thanks to its standardized geometry, the T-kerbstone can also be easily integrated during renovations and ensures the permanent stability of the crossings.
Installation reliability through system compatibility
Available in two lengths, the T kerbstone can be flexibly adapted to different track geometries and crossing designs. Compatibility with the STRAIL precast foundations and all standard STRAIL outer panels allows fast, precise installation even in confined spaces. As a design-equivalent to the D kerbstone without drainage, the T kerbstone is ideal for sections with low water exposure, where maximum load-bearing capacity is paramount.
