TOR_simplex
Efficient damping system for continuously supported frame track systems

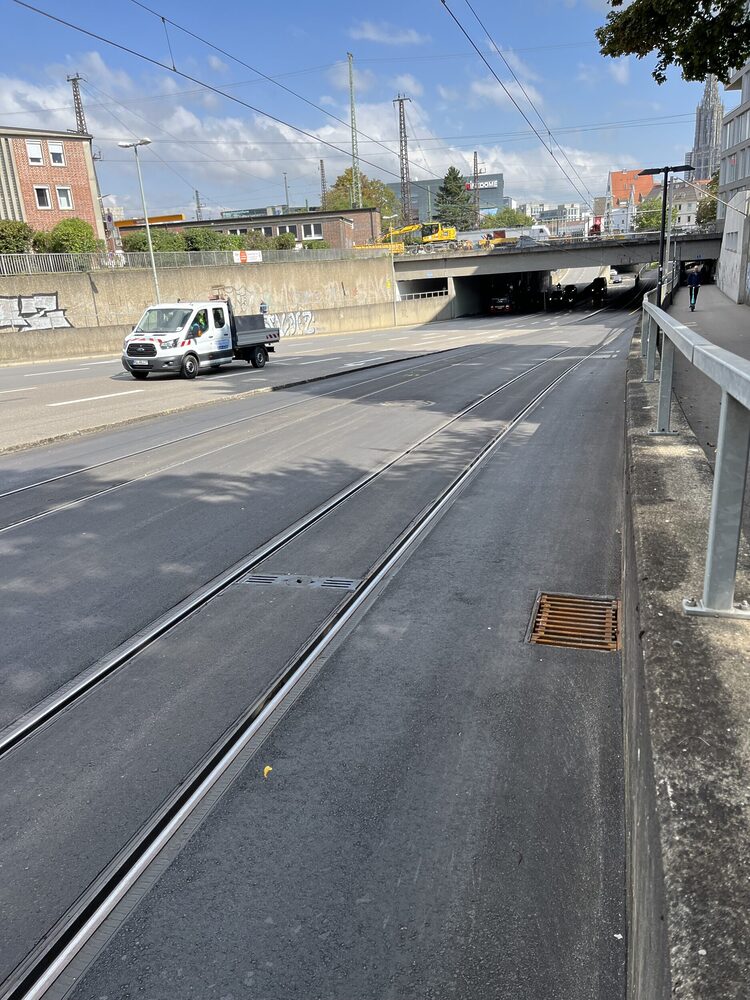

TOR_simplex has been specifically developed for continuously supported frame track systems. It provides reliable stray current insulation and reduces noise emissions into the surrounding track environment, making it ideal for noise-sensitive zones in urban transport networks. Different variants with selectable spring rates allow the system to be precisely adapted to specific technical requirements. The durable rubber construction ensures high operational reliability while enabling fast and efficient installation. The system combines long-term damping performance with cost efficiency and low installation effort.
Selectable spring rates for maximum flexibility
TOR_simplex provides an effective insulation and damping solution for frame track systems. Its straightforward handling allows even complex track sections to be equipped efficiently. The system delivers precise vibration decoupling and versatile application options.
Key benefits at a glance
- Specifically designed for continuously supported frame track systems
- Selection of different spring rates for optimal system tuning
- Effective reduction of noise emissions
- Reliable electrical insulation
- Robust, weather-resistant materials for long service life
- Simple installation and short installation times
