apex

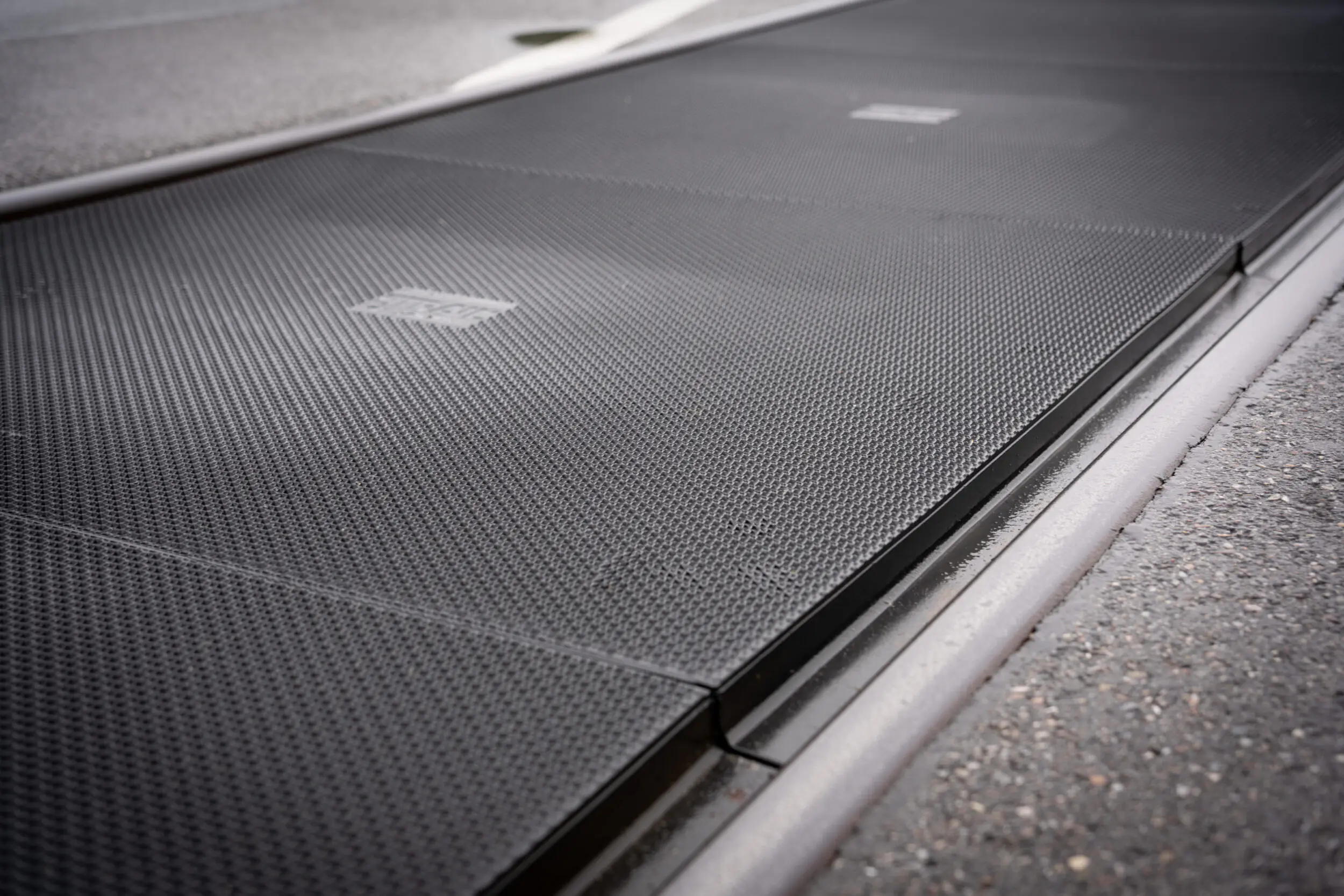

High-Performance Level Crossing System for Heavy-Duty and Industrial Traffic
apex is based on STRAIL level crossing panels and features a specially structured polymer surface (duragrip) developed for applications subject to particularly high mechanical loads. Typical applications include port and industrial facilities, as well as level crossings with tight curves or turning loops, where heavy vehicles generate high torsional and shear forces. The new level crossing system combines high structural load-bearing capacity with long-lasting grip, making it particularly suitable for heavily trafficked level crossings.
High Grip Even Under Continuous Loading

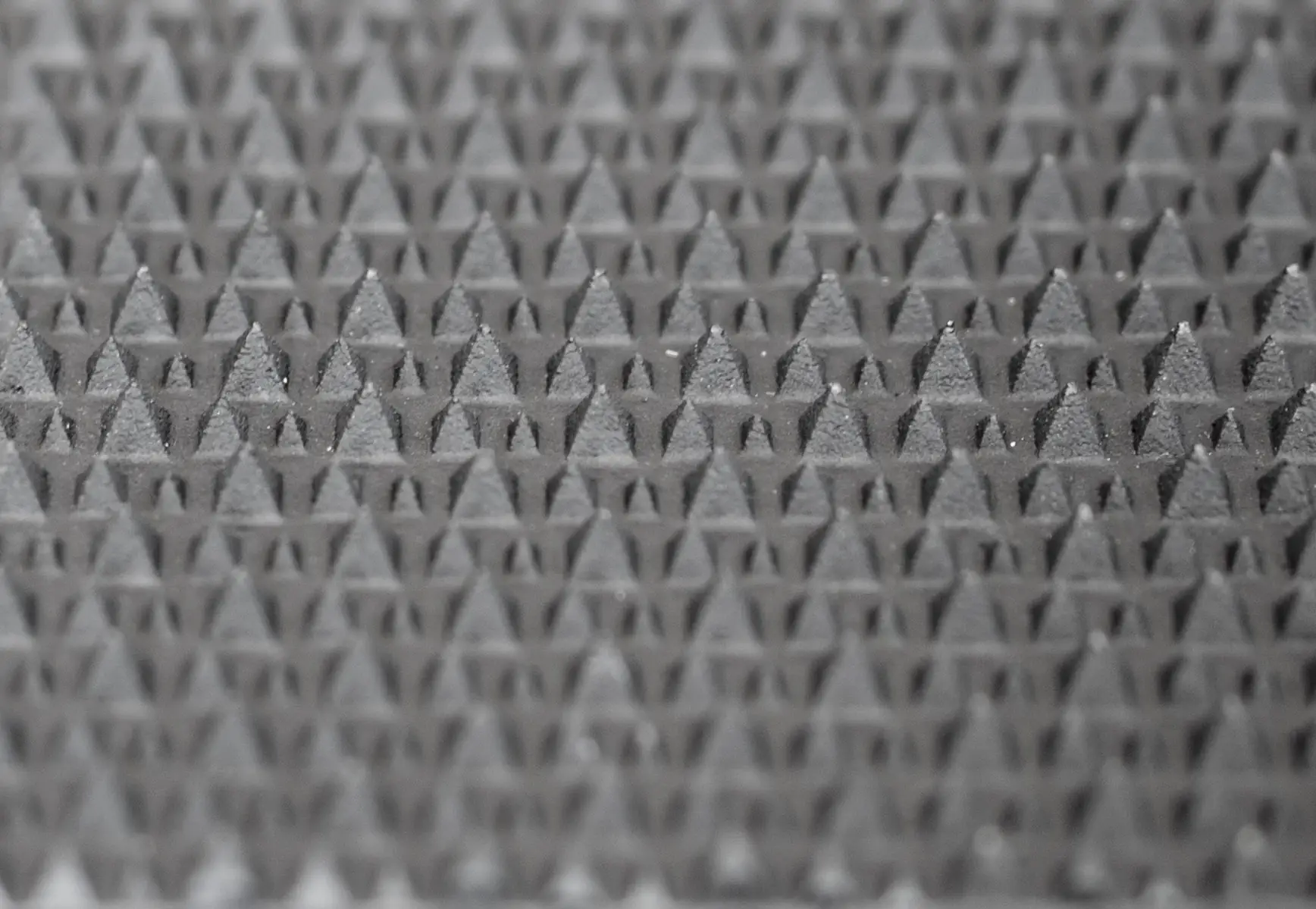

The specially developed duragrip polymer surface increases the structural stiffness of the level crossing panel while providing a highly slip-resistant driving surface. With an SRT value of more than 80, apex provides a high level of slip resistance that remains consistently high even after more than 3.5 million vehicle passes. The system is therefore designed for intensive traffic loads in applications where steering and turning heavy vehicles exert particularly high forces on the panels.
- SRT value of more than 80
- High grip even under intensive, continuous loading
- Designed to withstand high torsional and shear forces
- Particularly suitable for heavy-duty and industrial traffic
- Robust, structured polymer surface
References
grid
Bridge Safety: grid Prevents Unauthorised Access in Sion
Despite an existing access ban, pedestrians and cyclists were using two railway bridges in Sion as a shortcut. To reduce the risk of accidents, grid panels now provide an effective barrier against unauthorised access to the tracks – flexibly adapted to the site conditions and installed quickly.
Find out more STRAIL D kerbstone
Safe Level Crossing with Optimised Drainage
As part of the refurbishment of a level crossing on the historic Porrettana railway line between Bologna and Pistoia, RFI combined strail with D kerbstones to provide a long-term solution to a local drainage challenge.
Find out more innostrail
Infrastructure Project at the Port of Genoa: Road-Rail Vehicle Access Platform and Heavy-Duty Level Crossings
Tailored solution implemented at the Port of Genoa: For the first time, the sleeper-spacing-independent inno level crossing system was installed on slab track to create a dedicated platform for transferring road-rail vehicles onto the track in front of a tunnel. Complemented by two heavy-duty strail level crossings, the project delivers maximum safety and efficiency for port traffic.
Find out more Green track
Green Infrastructure: 4.8 Kilometers of STRAILastic Green Track Installed in Slovakia
As urban rail networks continue to expand, environmental considerations are becoming increasingly important. In Slovakia, our STRAILastic Green Track system was successfully installed over a distance of 4.8 kilometers. The project demonstrates how modern rail infrastructure can enhance the urban microclimate while meeting the highest technical standards for stray current insulation, ventilation, and noise mitigation.
Find out more mSW 1250Rail web dampers
First pilot installation of the mSW 1250 – complemented by proven rail web dampers
How do you protect a new residential area from railway noise without blocking the view?
In Bispingen, Germany, the first pilot installation of the mSW 1250 — combined with our rail web dampers — demonstrated that highly effective noise protection is achievable even at a height of just 1.25 m
Find out more In Bispingen, Germany, the first pilot installation of the mSW 1250 — combined with our rail web dampers — demonstrated that highly effective noise protection is achievable even at a height of just 1.25 m
STRAILway
Ecological excellence: STRAILway secures the “Pont Bleu” over the Drôme
As part of the €70 million refurbishment of the Livron–Aspres line, SNCF Réseau faced an environmental challenge: the ‘Pont Bleu’ spans a strictly protected nature reserve. The solution for maximum water protection and technical precision were STRAILway polymer sleepers.
Find out more STRAILway
Follow-up project in Hungary: GYSEV once again relies on STRAILway for bridge refurbishment
Building on their successful experience since 2020, Hungary’s GYSEV ZRt. once again turned to STRAILway for the refurbishment of the Répcelak tidal channel bridge. In May 2023, aging wooden bridge sleepers were replaced with the durable, modern polymer solution.
Find out more STRAILway
STRAILway replaces wooden sleepers in steelworks
Extreme loads of 15 million gross tons per year and maintenance-intensive wooden sleepers posed major challenges for the plant railway at Salzgitter Flachstahl GmbH. The solution: the all-inclusive, worry-free STRAILway polymer sleeper package – in service since 2018 and still in outstanding condition.
Find out more edge
edge bridges the gap between the tram and the platform in Florence
To ensure optimal safety and comfort for passengers at the 15 stops of Florence’s Tram Line 1, the gaps between the platforms and the trams needed to be closed. KRAIBURG STRAIL’s flexible and durable edge system provided the perfect solution: it acts as a sturdy cushion while bridging the gap, significantly enhancing boarding safety.
Find out more pedepedeSOLAR
pedeSOLAR creates bright, intuitive guidance for pedestrians at level crossings
The innovative and sustainable pedeSOLAR system provides self-contained, solar-powered lighting.
It delivers clear, additional guidance for cyclists and pedestrians, particularly in school zones in Kaltenkirchen South, Germany. By harnessing solar energy, it helps minimize accident risk in low-light conditions and sustainably enhances traffic safety in an environmentally friendly way.
Find out more It delivers clear, additional guidance for cyclists and pedestrians, particularly in school zones in Kaltenkirchen South, Germany. By harnessing solar energy, it helps minimize accident risk in low-light conditions and sustainably enhances traffic safety in an environmentally friendly way.
STRAIL B kerbstone
Level crossing with inno and B kerbstone installed in just three hours
The increasingly tight track possession times in modern track construction require solutions that are not only robust, but above all quick to install. For this project, the choice fell on the efficient combination of the inno system, which is independent of sleeper spacing, and the B kerbstone, which requires no foundation. It took a team of four just three hours to install the entire 5.4-meter-long level crossing. Thanks to the B kerbstone’s foundation-free design, the track could be reopened to traffic immediately after installation.
Find out more profil
Smooth crossing: profil closes crane rail gaps at the Port of Antwerp
Massive container cranes require large recesses in the quay to move along their rails. At the Port of Antwerp, these gaps—up to 55 cm deep—posed a significant obstacle and a safety risk for other traffic. Discover how the STRAIL system profil safely bridges the gap, optimizes logistics, and ensures the safety of all vehicles and personnel.
Find out more STRAIL D kerbstone
Efficient drainage with the STRAIL D kerbstone
In the rain-prone province of Limburg (Netherlands), the combination of the pede level crossing system and the STRAIL drainage kerbstone ensures efficient drainage and improved accessibility at the station.
Find out more STRAILway
Polymer sleepers in Loucna stand out for their easy handling
The first installation of STRAILway polymer sleepers in the Czech Republic took place in Loucna. This project involved replacing old wooden turnout sleepers. The quick, uncomplicated installation of the polymer sleepers and their attractive, high-quality design impressed the client and the railroad and public utility managers involved.
Find out more Rail web dampersIPmSW 360
Complete noise protection solution with the combined STRAILwave product range for reactivated tracks
After 45 years of closure, Nordhorn was reconnected to passenger transport. In order to protect local residents and recreational areas along the reactivated line, Bentheimer Eisenbahn AG opted for a combination of three STRAILwave noise protection products: rail web dampers, IP and the mSW 360 mini noise barrier. Planning, organization and installation were successfully completed in just a few weeks.
IP
Concrete-look noise protection blending seamlessly into the picturesque Cinque Terre coastline
Along the double-track coastal line in Bonassola (Cinque Terre), the rail operator was seeking a compact and visually appealing noise protection solution for the bridge sections. Thanks to the quick installation of the infill panels and their customized concrete-look design, rail noise was effectively reduced while the panels blend perfectly into the historic coastal landscape.
Find out more grid
Keeping tracks safe: grid at Ulzburg Süd Station
Effective protection against unauthorized access to the track area: At the busy Ulzburg Süd station in Schleswig-Holstein, it only took 3.5 hours to install grid over a 30 m² area. The rubber panels enhance safety and convinced AKN Eisenbahn GmbH of its effectiveness.
Find out more pontistrail
Efficient modernization with ponti and strail for critical crossings
Two level crossings in direct succession on the busy national road in Tecuci, Romania, represented a critical traffic junction. Find out how we installed a durable and modern solution in collaboration with track renewal. Despite challenging local conditions, the installation was completed in just two days.
Find out more pede
Flame-retardant pede solution for metro tunnels
Across the Milan Metro network, 24 pede level crossings with a flame-retardant rubber surface have been installed. These specially engineered crossings serve as essential emergency evacuation routes for passengers, significantly enhancing overall safety. Find out how our solution not only improves safety but also simplifies track maintenance.
Find out more velo
72 meters of safety: velo ensures a smooth crossing for cyclists
The deteriorated level crossing on Strand Road in Preston posed a safety risk, especially for cyclists. Discover how Ribble Rail used the velo system to make the crossing safer and gap-free, completing the 72-metre-long installation in just five hours.
Find out more inno
inno: Emergency access and derailment protection on Water Tower Bridge
On the busy Water Tower Bridge in Luxembourg City, the combination of car and tram traffic poses a particular challgenge. Find out how the inno level crossing panels enable emergency access thanks to custom cutting and the integration of a derailment protection groove, while at the same time guaranteeing maximum safety in the event of a tram derailment.
Find out more Green track
STRAILastic green track: Fast setup, flawless insulation
During the refurbishment of Munich’s Tram Line 25, Stadtwerke München installed 1,880 meters of green track. Discover how the STRAILastic_R profile not only met the stringent requirements for stray current insulation, but also, thanks to its quick and easy installation, helped the project reach completion ahead of schedule.
Find out more mSW 360
Our mini noise barrier: Effective and unobtrusive
The reactivation of the Ammertalbahn presented the operator with the challenge of effectively protecting residents in densely populated areas from rail noise—without impacting the surrounding landscape. Discover how the compact and flexible design of the mSW 360 delivered the ideal, discreet solution thanks to its low installation height and technical versatility.
Find out more STRAILway 30
STRAILway 30: Easy installation saves time in South Tyrol
In South Tyrol, a section of track in Renon was modernized. The project relied on inno for safe level crossings and the innovative STRAILway 30 sleepers for efficient on-site installation.
Find out more strailpede
A safe level crossing for all road users
Following an urgent refurbishment in Ibbenbüren, the Glücksburger Straße level crossing now ensures maximum safety for everyone thanks to the new track alignment.
Find out more
For Port Facilities, Industrial Sites and Tight Curves

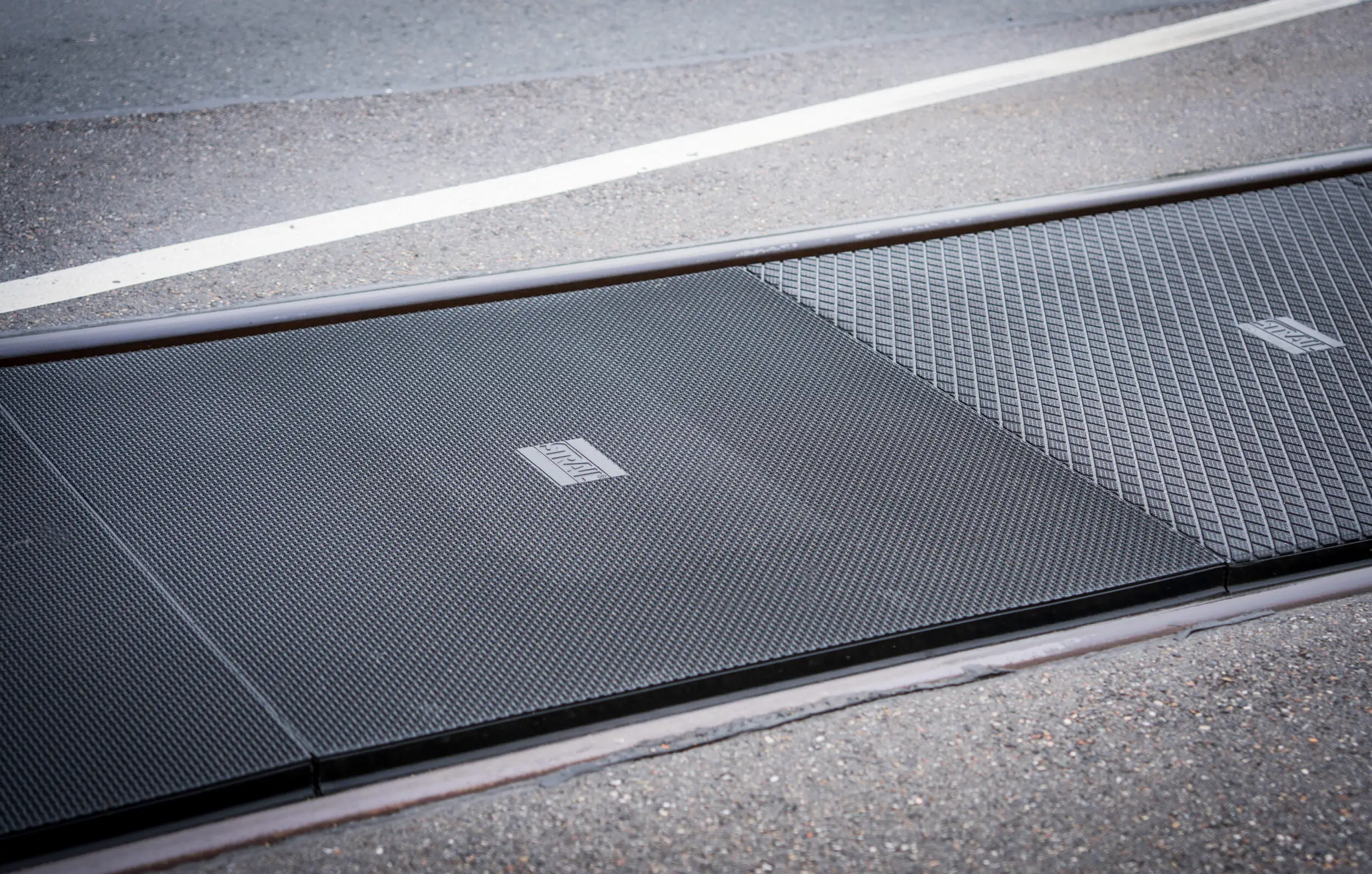

apex is designed for applications where heavy vehicles frequently drive over, steer or turn on level crossings. At heavily trafficked areas in port facilities and industrial sites, as well as on tracks with tight curves and turning loops, the system’s highly durable surface helps withstand the effects of high mechanical loads. The combination of increased stiffness and long-lasting grip supports reliable performance even under intensive heavy-duty traffic.
Easy to Maintain, Durable in Winter Conditions and Available in Different Colours
The optimised surface texture of apex makes it more difficult for dirt and residue to adhere, helping to simplify cleaning of the level crossing. The duragrip polymer surface also offers advantages during winter maintenance: when snowploughs are used, it is resistant to abrasion and does not tend to tear. The proven handling of the level crossing panels is retained. For visual or operational requirements, apex can also be produced in a single colour in a range of standard RAL colours.
