Drainage set
Efficient flange groove drainage for modern level crossings

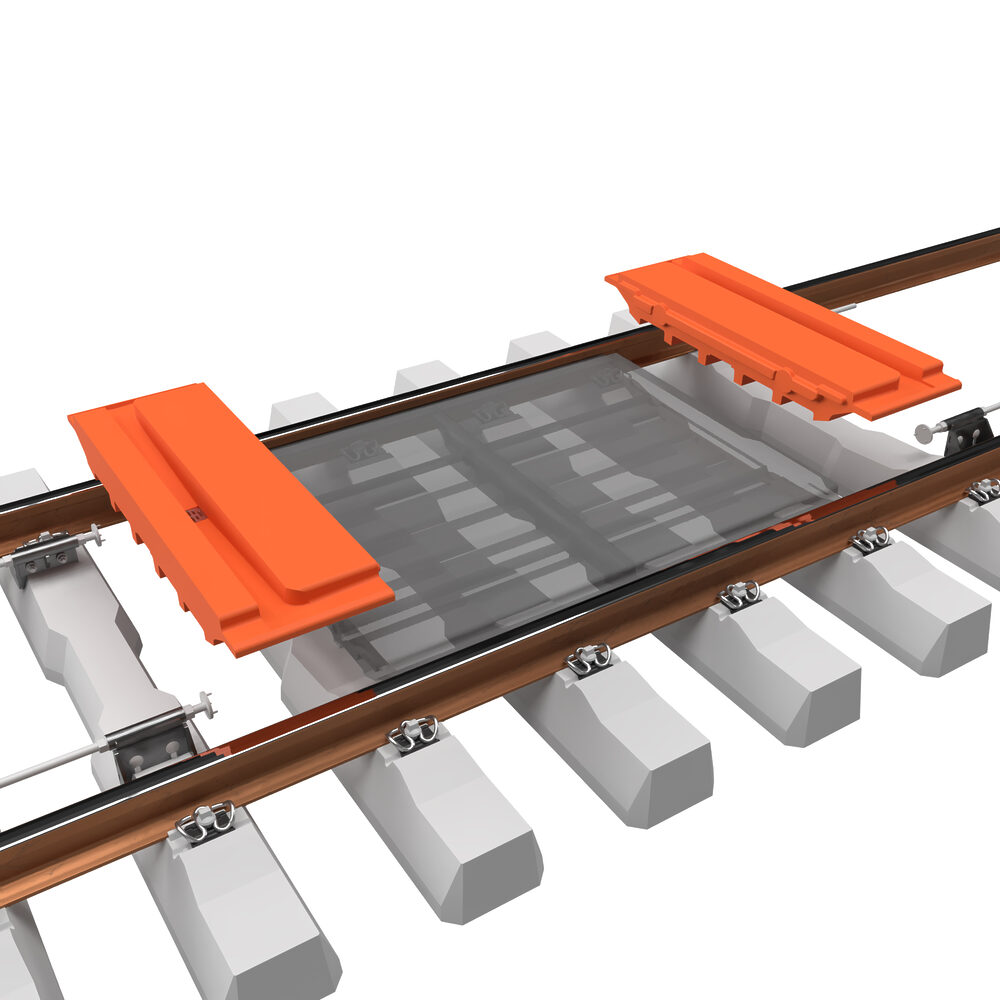

The STRAIL drainage set is an intelligent solution for the targeted removal of surface water directly from the flange groove and from the inner panels of a level crossing. It is suitable for both new installations and retrofitting existing crossings, especially where insufficient longitudinal gradient is present. By combining durable rubber panels with a stainless-steel drainage grid, rainwater is efficiently collected and discharged via a connected drainage pipe into an infiltration system or the sewer network. This reliably prevents water accumulation in the track area, even during heavy rainfall or snowmelt.
Integrated flange groove drainage – engineered as a complete system
The drainage set has been specifically developed for level crossings with defined drainage requirements. It offers high flexibility and long service life.
- Rubber panels with a durable new-rubber top layer and a stainless steel drainage grid
- Targeted drainage of rainwater from the flange groove and inner panels
- Fully compatible with all STRAIL inner panel systems
- Suitable for track cant conditions up to 100 mm
- Easy installation thanks to tongue-and-groove system with displacement protection
- Suitable for both new construction projects and retrofit installations
References
Drainage solution for level crossings with low gradient conditions
The STRAIL drainage set is particularly suitable for level crossings with low longitudinal gradients or zero gradient, where precipitation cannot reliably drain away. Especially in areas prone to water accumulation – such as low-lying track sections, crossings in depression areas or highly compacted subgrades – the system ensures controlled drainage directly from the flange groove. This not only improves safety for vehicles and pedestrians but also provides long-term protection of the track infrastructure against moisture-related damage
Technical integration and retrofitting in existing tracks
Thanks to its modular design, the drainage set can be easily integrated into existing STRAIL level crossing systems. The combination of tongue-and-groove connection, displacement protection and robust drainage grid allows precise installation with minimal effort. Even at crossings with track cant of up to 100 mm, the system remains fully functional and stable. This makes the drainage set an efficient solution for railway operators aiming to selectively improve drainage performance in critical crossing areas.
