mSW 360
The mini noise barrier – effective noise control with unobstructed visibility

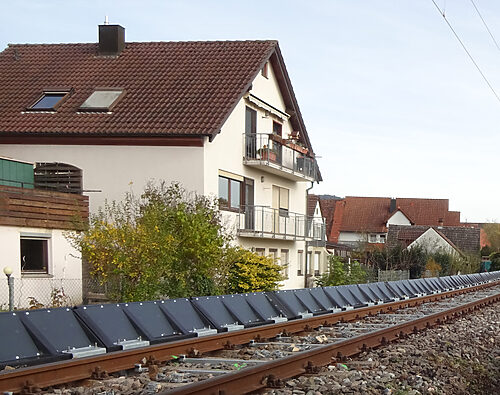

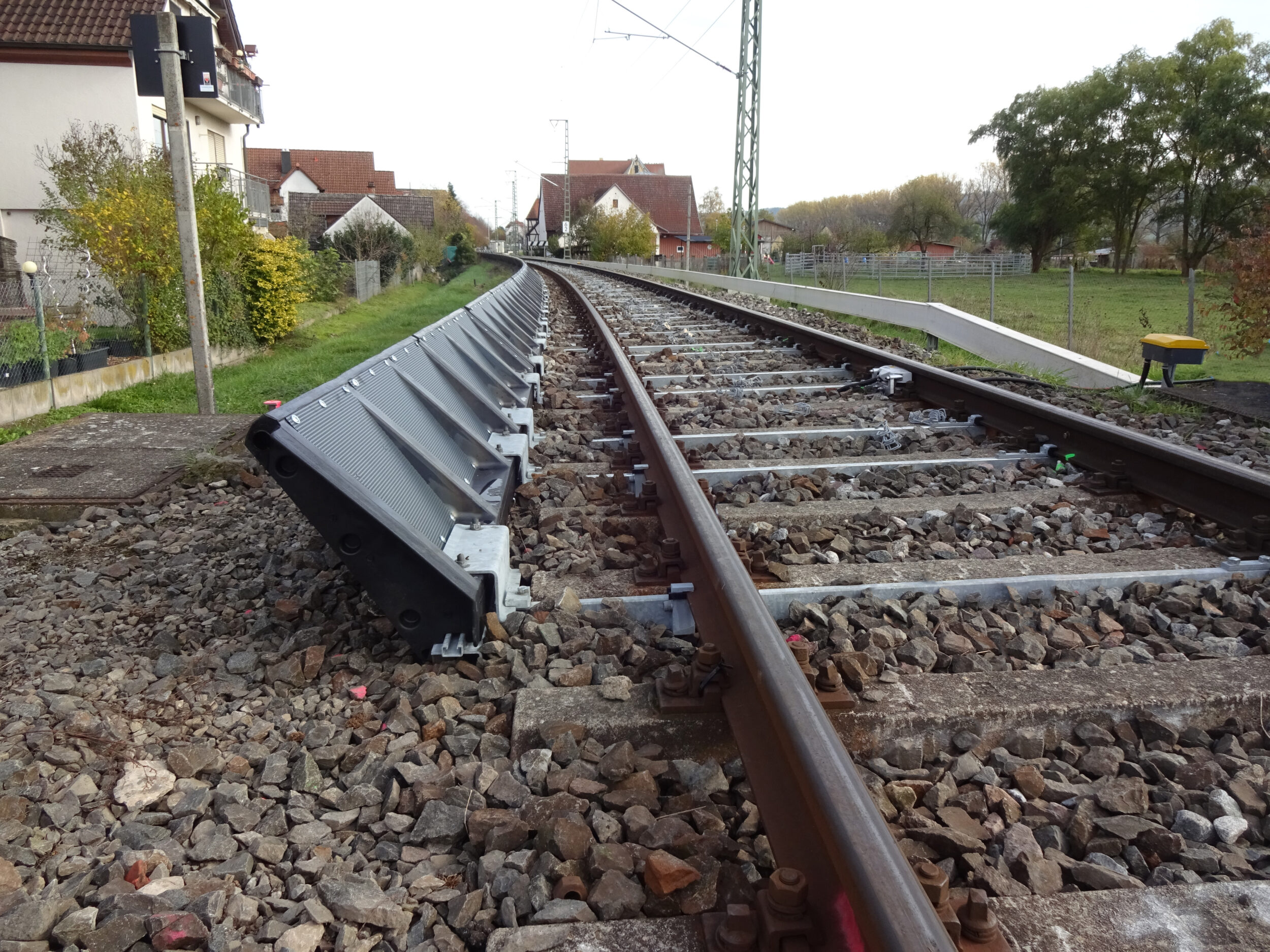

The mSW 360 is an innovative mini noise barrier designed for railway lines. Thanks to its extremely low height, it can be installed very close to the noise source – directly alongside the rail. This reduces noise emissions exactly where they are generated while maintaining clear, unobstructed views of the surroundings. The mini noise barrier is ideally suited for urban rail corridors, residential areas and environmentally sensitive landscapes. The modules are made from durable rubber with an absorptive acoustic surface and are mounted directly to the sleeper heads without the need for foundations.
Compact. Effective. Sustainable.
As part of the STRAILwave product family, the mSW 360 combines highly effective noise reduction with minimal space requirements and excellent environmental performance. Its benefits are particularly noticeable on sensitive track sections:
- High noise reduction performance despite low installation height, while preserving visibility
- Fast and easy integration, including retrofit applications
- Absorbs noise directly at the point of origin
- Quick installation and removal, e.g. for tamping operations
- Ideal for residential neighbourhoods and urban environments
- Sustainable: manufactured from recycled rubber granulate
References
Our mini noise barrier: Effective and unobtrusive
Complete noise protection solution with the combined STRAILwave product range for reactivated tracks
After 45 years of closure, Nordhorn was reconnected to passenger transport. In order to protect local residents and recreational areas along the reactivated line, Bentheimer Eisenbahn AG opted for a combination of three STRAILwave noise protection products: rail web dampers, IP and the mSW 360 mini noise barrier. Planning, organization and installation were successfully completed in just a few weeks.
Noise protection for urban and environmentally sensitive rail corridors

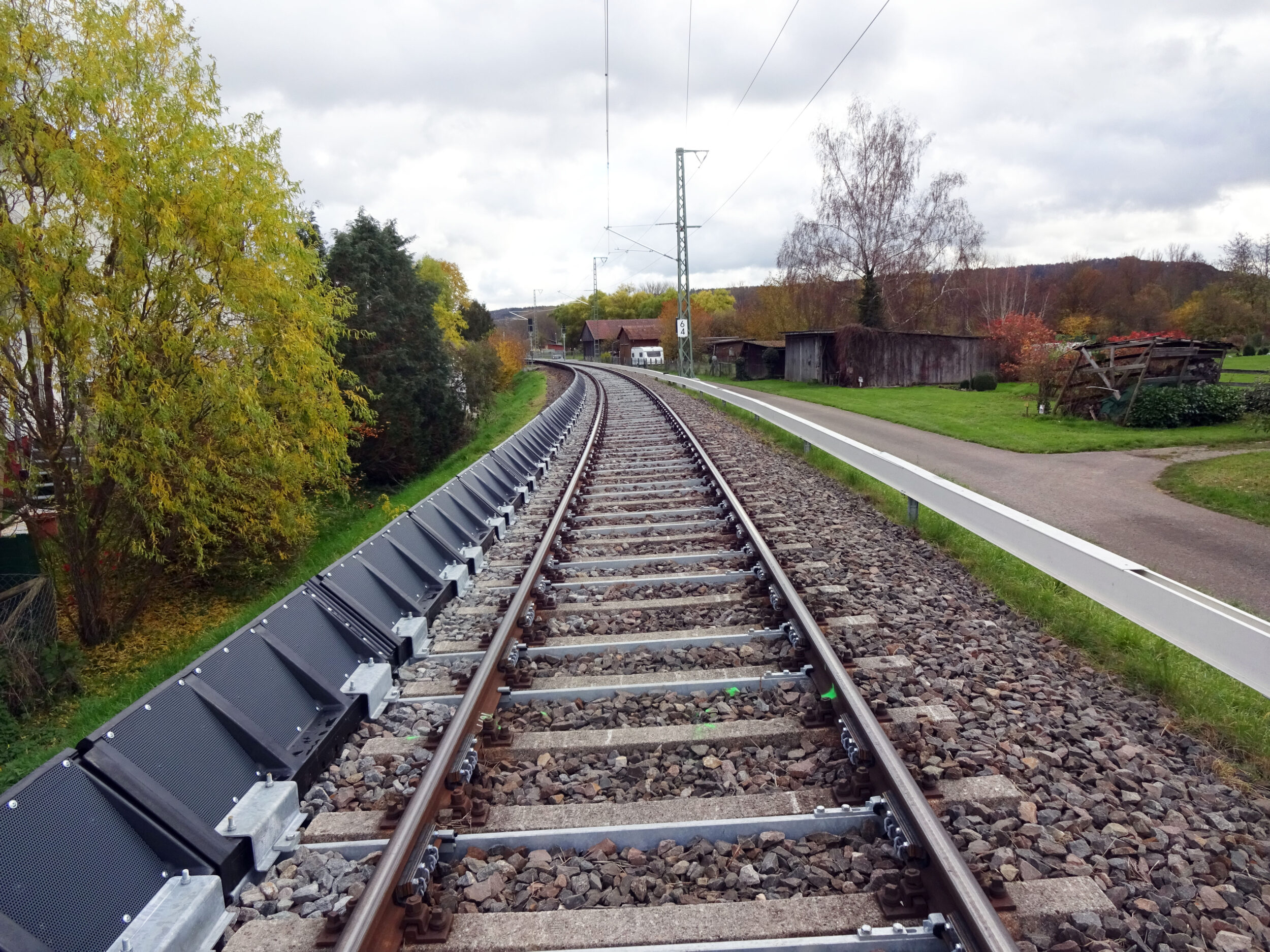

The mSW 360 is especially suitable for railway lines where conventional noise barriers cannot be installed due to urban planning or landscape constraints. In densely built residential areas, at stops or in open sections requiring visual continuity, the mini noise barrier mounted directly next to the rail acts at the source without impacting sightlines or the cityscape. The mSW 360 also provides an effective and visually discreet solution along parkland, river corridors and railway lines in heritage-protected environments.
Technical advantages for installation and maintenance

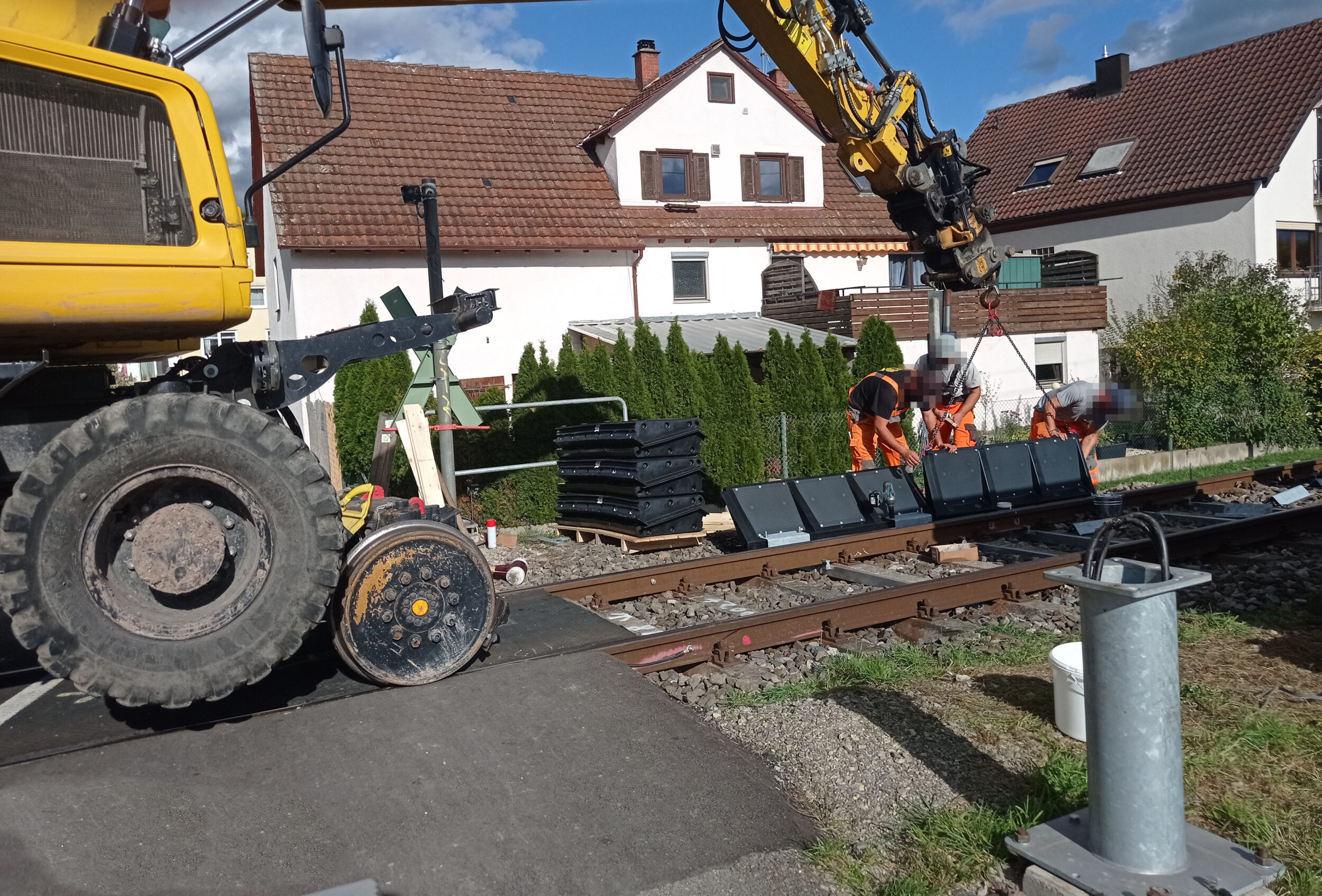

Direct mounting to the sleeper heads enables fast installation without foundation work, making the system ideal for retrofit projects or pilot installations in noise-sensitive areas. The rubber-based construction remains dimensionally stable, requires minimal maintenance and even allows temporary removal, for example during tamping operations or inspections. Thanks to its modular design, the mini noise barrier can be flexibly adapted to different track geometries and alignments.
